Water Pump Impeller 09-808B for SPX Flow Johnson Flexible Impeller Pumps 10-24143-1 F35B Models

Regular price $24.00 USD

If you are unsure whether this product is compatible with your specific engine model, please feel free to contact our technical specialists at info@soxa-marine.com.

Our team will review your inquiry and respond within 48 hours.

Soxa Marine Brand Raw Sea or Flesh Water Pump Repair Service Impeller Kit for Johnson SPX Flow Flexible Impeller Pumps

Johnson SPX Flow Impeller Part Number :
  • Johnson Flexible Pump Impeller  09-808B

Fit Johnson SPX FLOW Pumps Models :
10-24143-1    F35B-902
10-24143-2    F35B-902
10-24143-3    F35B-9
10-24143-4    F35B-9
10-24143-5    F35B-9
10-24178-1    F35B-902
10-24178-2    F35B-902
10-24178-3    F35B-9
10-24569-01    F35B-8
10-24569-03    F35B-802
10-24569-09    F35B-8027
10-24569-13    F35B-8
10-24569-15    F35B-802
10-24569-21    F35B-8027
10-24569-51    F35B-8007
10-24569-52    F35B-8007
10-25469-53    F35B-8007
10-24569-54    F35B-8007
10-32412-1    F35B-9
10-32412-2    F35B-902
10-35015-1    F35B-9
10-35015-2    F35B-9
10-35015-3    F35B-9
10-35038-1    F35B-8
10-35038-2    F35B-802
10-35038-3    F35B-8
10-35038-4    F35B-8007
10-35038-5    F35B-8027
10-35038-6    F35B-802
10-35038-7    F35B-8027
10-35038-8    F35B-8
10-35038-9    F35B-8007
10-35038-41    F35B-8007
10-35052-1    F35B-9
10-35065-    F35B/F35B-9
10-35088-2    F35B-902
10-35088-3    F35B-9
10-35091-1    F35B-9
10-35091-2    F35B-902
10-35091-3    F35B-902
10-35118-1    F35B-9
10-35118-2    F35B-9
10-35122-1    F35B-9
10-35141-1    F35B-9
10-35141-2    F35B-902
10-35157-1    F35B-9
10-35157-2    F35B-902
10-35157-3    F35B-9
10-35157-4    F35B-902
10-35157-5    F35B-9
10-35157-6    F35B-9
10-35157-7    F35B-902
10-35157-8    F35B-9
10-35187-1    F35B-9
10-35187-2    F35B-9
10-35187-3    F35B-9
10-35187-4    F35B-9
10-35211-1    F35B-9
10-35211-2    F35B-902
10-35211-3    F35B-9
10-35211-4    F35B-902
10-35211-5    F35B-9
10-35288-01    F35B-9
10-35288-02    F35B-902

If you need Water Pump Repair Kit 09-45900, 09-46840, 09-45589 Pls Contact to us.

The Impeller Fit Below Engine's Cooling Pump
Arona    AD 182L/M
Arona    AD 190
Arona    AD 190/195M
Arona    AD 195M
Arona    AD 195M/R
Arona    AD 295 M
Blaxland    2 cyl
BMW    D 7/12
Bukh (Aabenraa)    DV 10 LME/LSME
Bukh (Aabenraa)    DV 10 M
Bukh (Aabenraa)    DV 10 ME/SME
Bukh (Aabenraa)    DV 10 ME/SME
Bukh (Aabenraa)    DV 18 LME/LSME
Bukh (Aabenraa)    DV 20 M
Bukh (Aabenraa)    DV 20 ME/SME
Bukh (Aabenraa)    DV 24 ME/SME
Bukh (Aabenraa)    DV8 ME/SME
Diecon    D850 (Circ Pump)
Diecon    Z600 (Circ Pump)
Drinkward Motoren    K2 AS
Ducati    DM 184
Ducati    DM 284
Ducati    DM 286
Ducati    IS 16/20
Ducati    IS 184/186
Ducati    IS 284/286
Ducati    IS 9/11
Ekstroem    K 2AS
Engel, Max    A 30M
Engel, Max    A 40M
Engel, Max    A 560
Engel, Max    FK 2M
Engel, Max    FK 600M
Engel, Max    K 34A/K 34M
Engel, Max    L 30M
Engel, Max    M 560-1
Entec West    4,2 kW
F J Fay    2400
F J Fay    D850
Farymann    A 30M
Farymann    A 40M
Farymann    FK 2
Farymann    K 34
Farymann    K 34
Farymann    L 30M
Fast Freeze Refr.    Model 16
Fast Freeze Refr.    Model 25
Fischer Panda    Panda 14 000 Ne PMS Kubota
Fischer Panda    Panda 3.8 ND PMS FAR Faryman
Fischer Panda    Panda 4.5 ND PMS FAR Faryman
Fischer Panda    Panda 4500 FCB PMS FAR Faryman
Fischer Panda    Panda 4500 SCB PMS FAR Faryman
Fischer Panda    Panda 4500 SCE PMS FAR Faryman
Fischer Panda    Panda 5000 LPE PMS Kubota
Fischer Panda    Panda PMS 3   FAR  Faryman
Fischer Panda    Panda PMS 4  FAR Faryman
Flamme    D430
Fredrikstad Motor    S15
Grassetti    FM 10
HFL    Petter
Hydromarine    DM12
Lombardini    LDW 401 M
M.A.N.    GAE 186
Mandals Motorfabrik    D 8
Mandals Motorfabrik    MB 10
Meakes, JG    1 cyl
Motor Marine Devon    VW4
Motor og Prop.teknik    K 34
Motor og Prop.teknik    K.L.A.
Motor og Prop.teknik    L 30
Onan Corp    Ensign
Onan Corp    MAJB
Onan Corp    5.0 MDKOB
Onan Corp    5.5 MDKUB
Onan Corp    6.0 MDKOB
Onan Corp    6.5 MDKUB
Onan Corp    7.5 MDKOB
Onan Corp    9.0 MDKOB
Pwer Genny    2 cyl
PowerGen Pty Ltd     Kubota OC60
Ruggerini    CRD 100
Ruggerini    CRD 100/951
Ruggerini    CRD 951
Ruggerini    MM150
Ruggerini    MM191
Ruggerini    PM 105
PKF Marine    PM 105/2
PKF Marine    RD 100/2
PKF Marine    RD 100/951
PKF Marine    RDM 901
Perkins    RM 80
Perkins    RM 90
Sea Wasp    SW 3200-4 KVA-
Sea Wasp    SW 4800- 6 KVA-
Universal (Medalist)    1.400000001
Variant    5PS/8PS/10PS
WM Diesel (KUBOTA)    WM 12 (Z482)
Volvo Penta    2001 B
Volvo Penta    2001/2/3 R
Volvo Penta    2002 B
Volvo Penta    2003 B
Volvo Penta    MB 10A
Volvo Penta    MB 10A/11
Volvo Penta    MD 1
Volvo Penta    MD 11C/D
Volvo Penta    MD 1A/1B
Volvo Penta    MD 1B
Volvo Penta    MD 1KHD/HY
Volvo Penta    MD 2
Volvo Penta    MD 2B
Volvo Penta    MD 2HBY
Volvo Penta    MD 5A
Volvo Penta    MD 5B/C
Volvo Penta    MD 6A
Volvo Penta    MD 6B
Volvo Penta    MD 7A
Volvo Penta    MD 7B
Watermota    Sea Cub Mk2
Westerbeke    8-10 kW

Detail Impeller Informations
Johnson     OEM  Diameter Depth Shaft Size Shaft Blands Material
09-808B 40 19-19.2 12 1 / I  6 CR

Package Include:

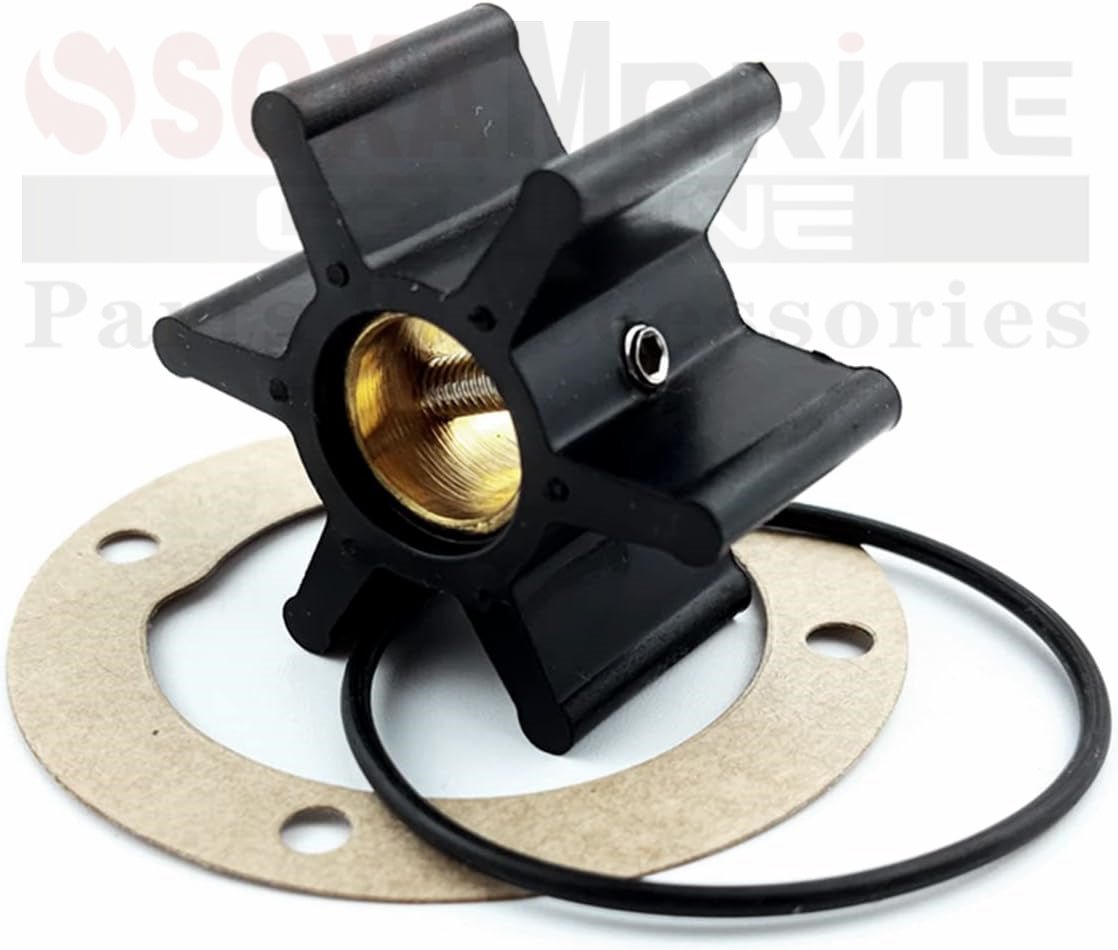

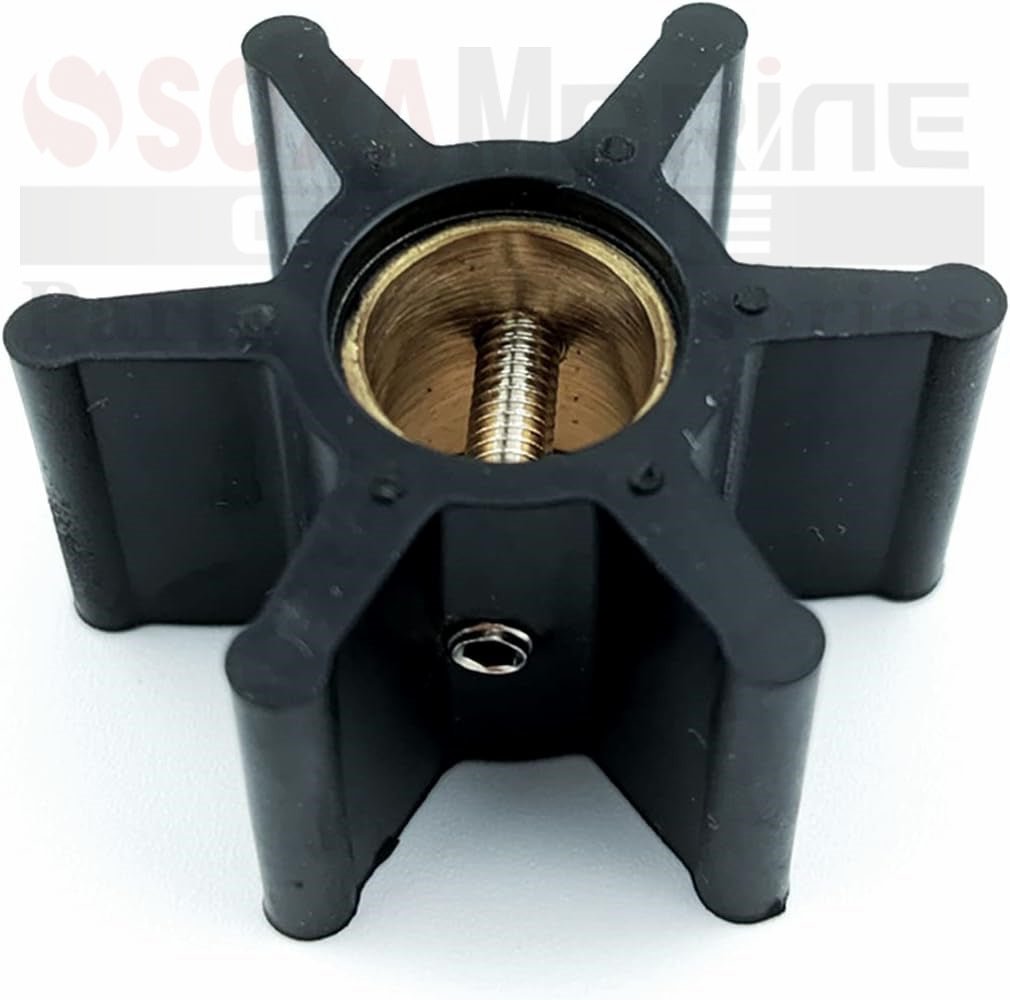

  • Impeller

Same to the picture shown

Our Store Include all Marine Engine Water Pump Impellers and Water Pump Repair Kit.


There are a way of identifying the part number of the correct Johnson
Selection Table by Dimensions.
 • How many blades are there?
 • What is the outside diameter?  (see Chart A).
 • What type of drive is it? (see Chart B).
 • What is the depth? (see Chart A).
 • What is the shaft diameter?  (see Chart A).
 • Which material is needed?
 • Read off the part number
How to Identfy the Correct Water Pump for Your Boat Motor or Outboard Engine:
To find the exact water pump model or kit for your boat engine.
1、Check the Owner's Manual: The manual will specify the correct part number for your engine.
2、Engine Serial Number: Use the serial number of your outboard or boat engine to look up the correct water pump spare parts on official parts catalog or through a dealer.
3、Consult or Email to SOXA Marine: We can help you identify the right water pump part for your specific model, but you need to supply the right engine brand, stroke, horsepower, year to us.

SOXA Marine:
-Precision Boat Engine Water Pump Parts for Boat Uninterrupted Journeys.

SOXA Marine dedicates itself to crafting high-performance boat engine cooling water pump rubber impellers that power your boat journeys, also understand that a reliable impeller isn't just a spare part, it's the lifeline of your water pump system.
From advanced polymer formulas to rigorous quality control, every SOXA Marine Parts is engineered to resist corrosion, reduce wear, and outlast, trust SOXA Marine to keep your engine running smoothly, mile after nautical mile.

"Partner with SOXA Marine – Where Quality Meets Affordability!"
