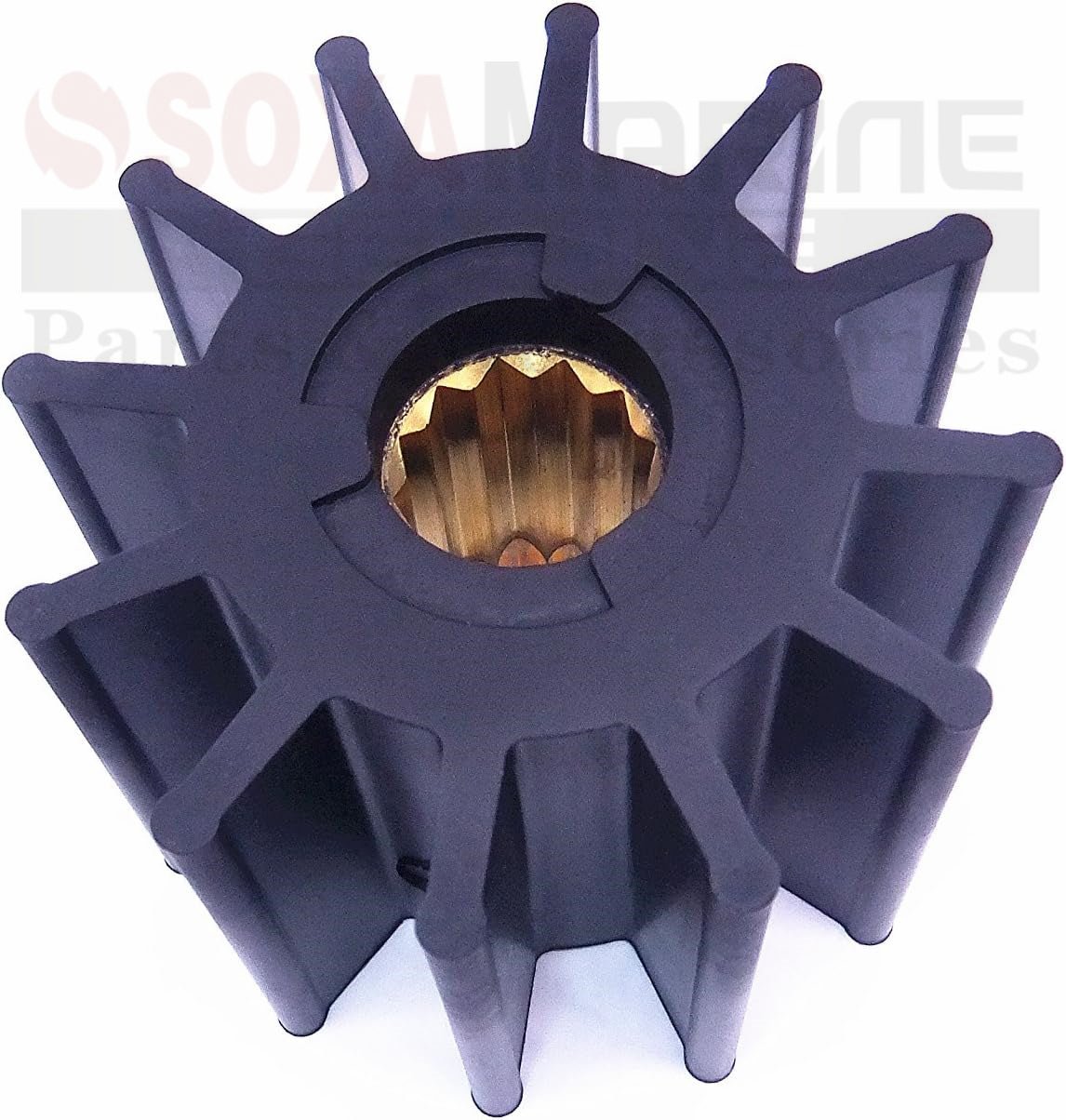

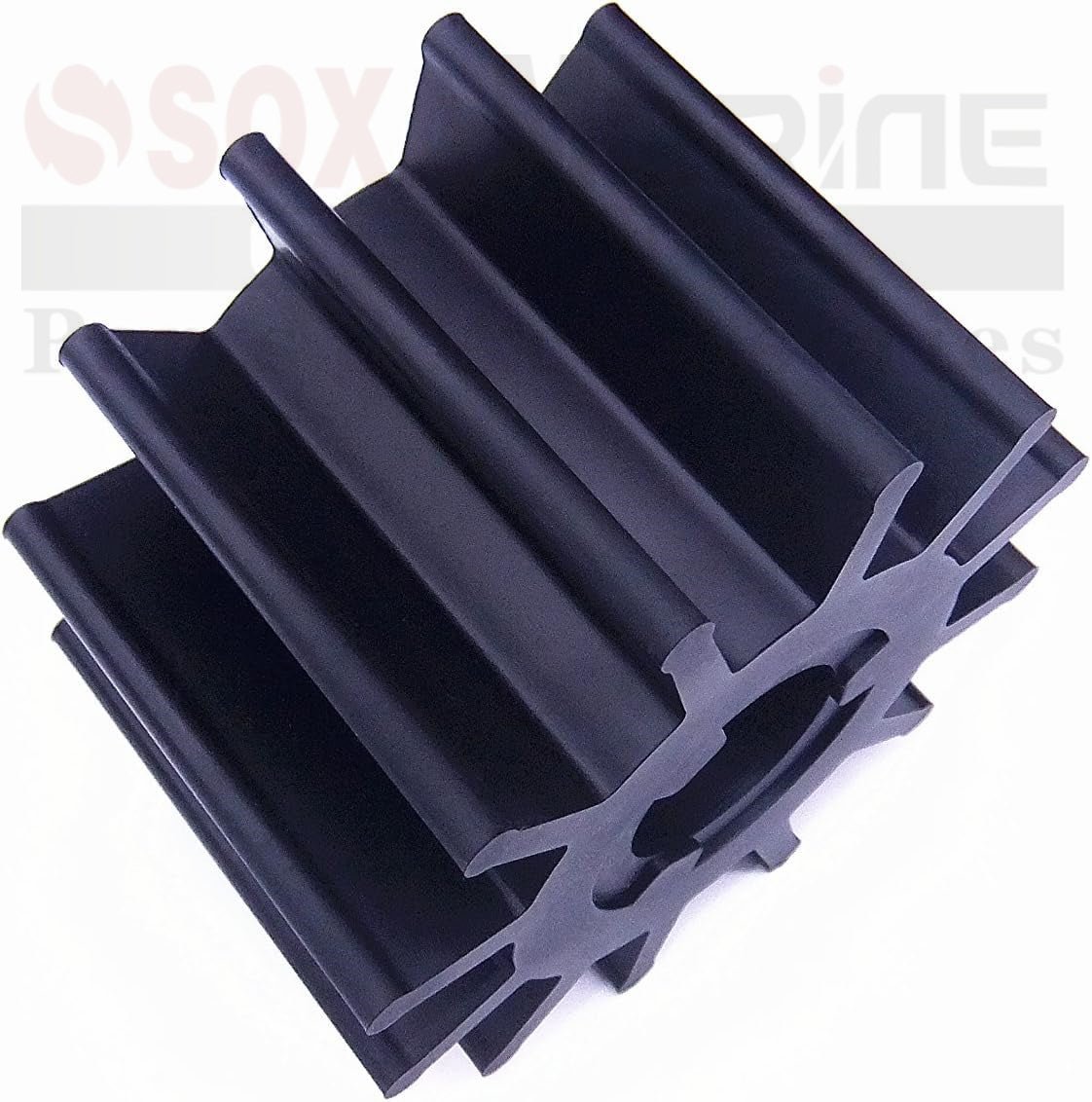

Water Pump Impeller 09-819B for SPX Flow Johnson Flexible Impeller Pumps 10-13021-1 F8B Models is backordered and will ship as soon as it is back in stock.
Johnson SPX Flow Impeller Part Number :
- Johnson Flexible Pump Impeller 09-819B
Fit Johnson SPX FLOW Pumps Models :
10-13021-3 F8B-803
10-13021-5 F8B-8
10-13021-7 F8B-803
10-13021-9 F8B-8007
10-13021-11 F8B-8037
10-13021-13 F8B-8007
10-13021-15 F8B-8037
10-13021-17 F8B-8
10-13021-91 F8B-8007
10-13021-92 F8B-8007
10-13021-95 F8B-8007
10-13021-96 F8B-8007
10-13022-83 F8B-5001
10-13022-95 F8B-50017
10-13022-96 F8B-50017
10-13022-98 F8B-50017
10-13022-99 F8B-5001
10-13024-1 F8B-3000
10-13024-3 F8B-3030
10-13024-5 F8B-3020
10-13025-99 F8B-5000
10-13088-01 F8B-9
10-13088-02 F8B-902
10-13088-03 F8B-903
10-13096-01 F8B-9
10-13096-02 F8B-9
10-13175-01 F8B-3000-TSS
10-13176-99 F8B-5000-TSS
10-13180-01 F8B-9
10-13263-01 F8B-9
10-13305-01 F8B-9
10-21915-1 F8B-903
10-21915-2 F8B-903
10-22047-1 F8B-3
10-22047-3 F8B-303
10-22096-1 F8B-900
10-22096-2 F8B-903
10-22096-3 F8B-902
10-22162- F8B-5
10-24026-1 F8B-903
10-24027-1 F8B-903
10-24091-1 F8B-900
10-24091-2 F8B-903
10-24091-3 F8B-902
10-24096-1 F8B-900
10-24096-2 F8B-903
10-24096-3 F8B-902
10-24096-4 F8B-902
10-24130-3 F8B-905
10-24181-1 F8B-9
10-24181-2 F8B-903
10-24181-3 F8B-9
10-24181-4 F8B-903
10-24315-01 F8B-903
10-24559-01 F8B-5001 MC
10-24559-02 F8B-50017 MC
Arona TA 130
Arona TA 200
Caterpillar 3208
Cummins M(T)-855-M
Cummins M(TA)855-M
Cummins M(TA)855-M
Cummins V(T)555M
Cummins V(TA)-1710-M
Cummins V903
Cummins VT-555-M-BC
Cummins VT8-370-M LH
Cummins VT903
Cummins VTA903
DAF DK 1160MY
DAF DKS 1160M
DAF DKT 1160
DAF DKV 1160M
DAF DKVD 1160M
Detroit Diesel 653
Detroit Diesel 671
Detroit Diesel 853
Direct Power Ind. 45A1
Iveco-Aifo 828 Mtca
M.A.N. W 3V 17,5/22A
M.A.N. W 5V 17,5/22A
M.A.N. W 6V 17,5/22A
Mercedes OM 403, 404
MTU 6R 099 TE61, 91, 51
Motor og Prop.teknik 1300
Motor og Prop.teknik 1600
Pathfinder Marine TV8.5410/40
Pathfinder Marine V8.510
Scania D8
Scania D8
Scania D8
Scania DS9
Schwarting S 421/422/422A/423
Schwarting S 424
Thornycroft 760
Thornycroft 590/690/691
Thornycroft T 500
Valmet Oy 611
Valmet Oy 612
Union Motor 611 DM/DSM
Union Motor 611 DSBJM
Union Motor 611 DSBM
Union Motor 615 DM
Vetus den Ouden 1306 MH14
Vetus den Ouden 1308 MH14
VM Motori T 1306 MH14
VM Motori T 1308 MH14
VM Motori TI 1306 MH14
VM Motori TI 1308 MH14
Volvo Penta AQAD 40A/B
Volvo Penta MD 100/100BK
Volvo Penta MD 100A
Volvo Penta MD 120
Volvo Penta MD 120A
Volvo Penta MD 71
Volvo Penta TAMD 120
Volvo Penta TAMD 120A
Volvo Penta TAMD 40A/B
Volvo Penta TAMD 61
Volvo Penta TAMD 61/A
Volvo Penta TAMD 71/A/B
Volvo Penta TMD 100/100AK
Volvo Penta TMD 100A
Volvo Penta TMD 100C
Volvo Penta TMD 102A
Volvo Penta TMD 120
Volvo Penta TMD 120A
Volvo Penta TMD 121C
Volvo Penta TMD 122A
Volvo Penta TMD 71
| Johnson OEM | Diameter | Depth | Shaft Size | Shaft | Blands | Material |
| 09-819B | 95 | 63 | 25.5 | 7 / K | 12 | CR |


Package Include:
- Impeller
Same to the picture shown
Our Store Include all Marine Engine Water Pump Impellers and Water Pump Repair Kit.
Selection Table by Dimensions.
• How many blades are there?
• What is the outside diameter? (see Chart A).
• What type of drive is it? (see Chart B).
• What is the depth? (see Chart A).
• What is the shaft diameter? (see Chart A).
• Which material is needed?
• Read off the part number
1、Check the Owner's Manual: The manual will specify the correct part number for your engine.
2、Engine Serial Number: Use the serial number of your outboard or boat engine to look up the correct water pump spare parts on official parts catalog or through a dealer.
3、Consult or Email to SOXA Marine: We can help you identify the right water pump part for your specific model, but you need to supply the right engine brand, stroke, horsepower, year to us.
